Ideal solutions for the glass industry

With the vacuum profile, Schauenburg Industrietechnik has found an ingenious solution for glass production in small to large series. The innovative, perfectly fitting vacuum lip profiles are made to order according to an individual drawing with a 1:1 scale. This allows the glass industry to offer complete solutions for the automotive sector, even in small series. Very small series are for example utilised in the development of a new product.

Advantages of the vacuum profile:

• Perfectly adaptable to the respective project
• Strong and stable even under challenging conditions
• Choice of various profile types – up to a composite thickness of 20 mm
• Use of innovative materials such as silicone and elastomer
• Profile angle available in different versions

SB IT C Spezialprofile Vakuumprofile Anwendung 15040 594SB IT C Spezialprofile Vakuumprofile 15040 1527

Vacuum lip profiles adapt to virtually any pane shape. As an innovative research partner for the automobile industry, Schauenburg Industrietechnik supports entirely new insights and results in the development and testing of new products within the glass industry.

Tailored solutions for development and production

Bulk stock is extruded and cut to length for each vacuum profile. Then the corners and T-pieces are vulcanised with the help of injection tools. This results in a number of design possibilities. The solution is efficient and cost-effective, especially for small series and medium-sized production runs up to 250 units.

SB IT C Spezialprofile Vakuumprofil T Stueck 15040 1079SB IT C Spezialprofile Vakuumprofil T Stueck 15040 1117SB IT C Spezialprofile Vakuumprofil T Stueck 15040 1117SB IT C Spezialprofile Vakuumprofil T Stueck 15040 1087
If a company in the glass industry is faced with particular technical challenges, the wide range of individual elements, for example the angles in various designs, help to ensure that the vacuum profile can be perfectly adapted. Due to the simplicity of the system, Schauenburg Industrietechnik can produce all vacuum profiles quickly and to perfection. In the field of automotive production and research, this means that there are no time delays and a project can be completed as planned.

Schauenburg Industrietechnik offers its profile solutions in different versions that are tested in the automotive sector under normal conditions. Precise manufacturing is the key to success. A high load bearing capacity is always assured by the vacuum process.

Please talk to us about your needs and ideas! Our engineering expertise makes us a reliable partner for all projects right from the start. You can find our contact form here.

Teaser Button Call to Action Anprechpartner EN



SB IT C Spezialprofile Vakuumprofil Profilstaerken 15040 1045SB IT C Spezialprofile Vakuumprofil Profilstaerken 15040 1034SB IT C Spezialprofile Vakuumprofil Profilstaerken 15040 1027 webSB IT C Spezialprofile Vakuumprofil Profilstaerken 15040 1023

Features

· Profile type 1 (Mondeo profile) for laminated glass, thickness 3-4 mm, in silicone and elastomer
· Profile type 2 (normal profile) for laminated glass, thickness up to 7 mm, in silicone and elastomer
· Profile type 3 (Porsche profile) for laminated glass, thickness up to 12 mm, in silicone and elastomer
· Profile type 4 (Maxi profile) for laminated glass, thickness up to 20 mm, in silicone

SB IT C Spezialprofile Vakuumprofile 15040 387

Schauenburg Industrietechnik – a strong industry partner with the vacuum profile

Schauenburg Industrietechnik has been a strong and flexible industry partner since the company was founded. Thanks to individually adaptable elements, the products are used in many fields such as the automobile industry. The vacuum profile is the perfect example of an innovative product that helps many partners in the glass industry and automobile sector realise custom solutions. Individual parameters that can be adapted to the project or product in small series lead to tailor-made processing. In case of the profile in question, this is the ideal method for laminated glass panes with a thickness of three millimetres and up. The resilient material withstands temperatures of up to 150 degrees Celsius.

SB IT C Spezialprofile Vakuumprofil Profilform 15040 1190SB IT C Spezialprofile Vakuumprofil Profilform 15040 1205SB IT C Spezialprofile Vakuumprofil Profilform 15040 1211 web

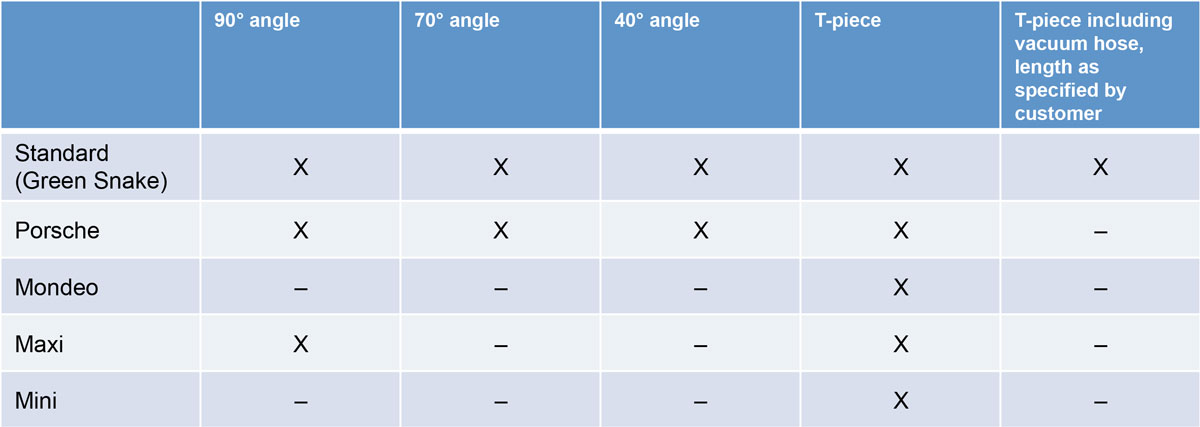

Versions depending on the profile type (frames with corner connections and T-piece):

· 90° angle
· 70° angle
· 40° angle
· Rings with T-piece
· Connection for the vacuum hose
· T-piece
· With vacuum hose connected by vulcanisation

SB IT C Spezialprofile Vakuumprofile Ausfuehrungen Tabelle

SB IT C Spezialprofile Vakuumprofil Winkel 15040 1095SB IT C Spezialprofile Vakuumprofil Winkel 15040 1098SB IT C Spezialprofile Vakuumprofil Winkel 15040 1102
Automobile industry partner

Schauenburg Industrietechnik is a partner of choice for the automobile industry with this solution. Small series and products in the development phase can be thoroughly tested this way. Laminated glass can be readily installed in frames of any version. Automotive suppliers and the automobile industry can gain insights with the help of this product, leading to a better marketable product.

Please talk to us about your needs and ideas! Our engineering expertise makes us a reliable partner for all projects right from the start. You can find the right contact person for your request here.

Teaser Button Call to Action Anprechpartner EN



SB IT H Profiltechnik Spezialprofile Vakuumprofile 15040 324

The profiles are easy and safe to use so that work on existing projects can continue without delay. The flexibility of the materials supports pane shapes that cannot be fitted into a frame using conventional means. Curves or special patterns can be easily taken into account during profile fabrication. Each profile includes all components required for immediate use.

SB IT C Spezialprofile Vakuumprofile Flexibel 15040 1491
